Quartus - Signal Tap

FPGA 내부 신호를 읽어서 디버깅에 도움을 주는 Signal Tap 사용 방법

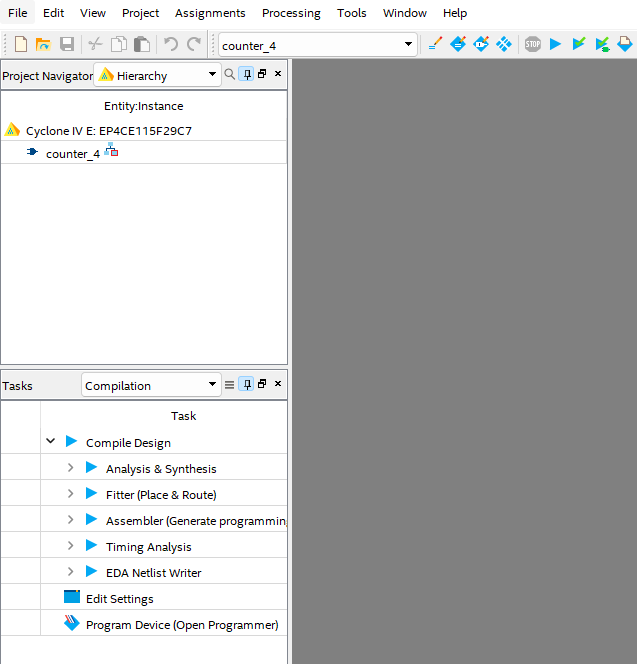

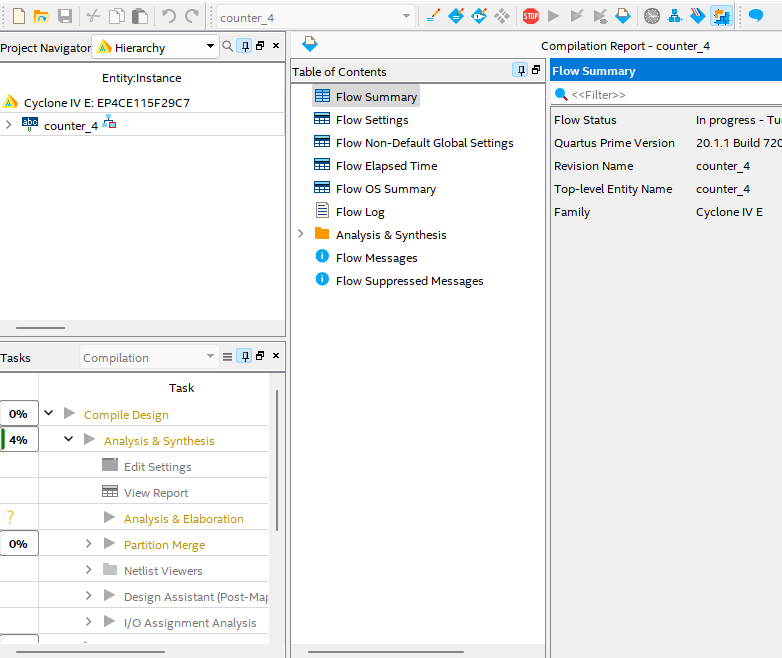

Compile

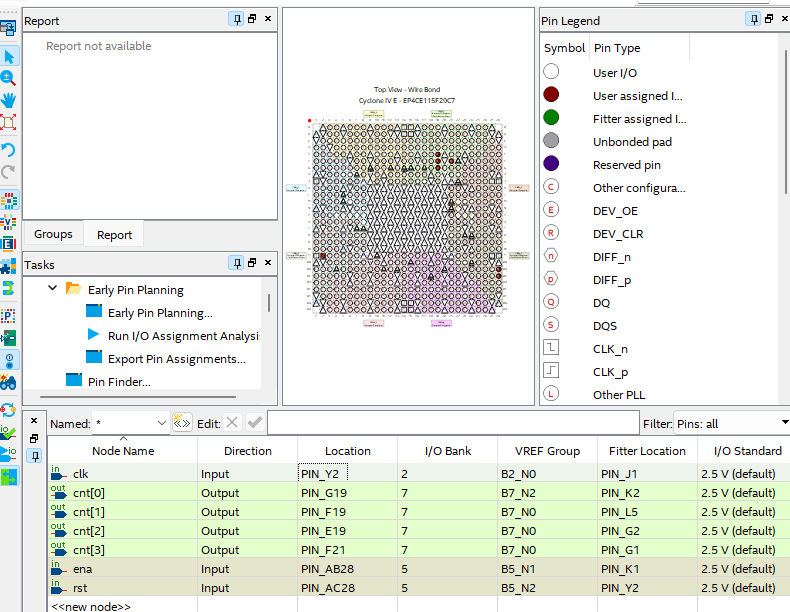

Pin Planning

Compile

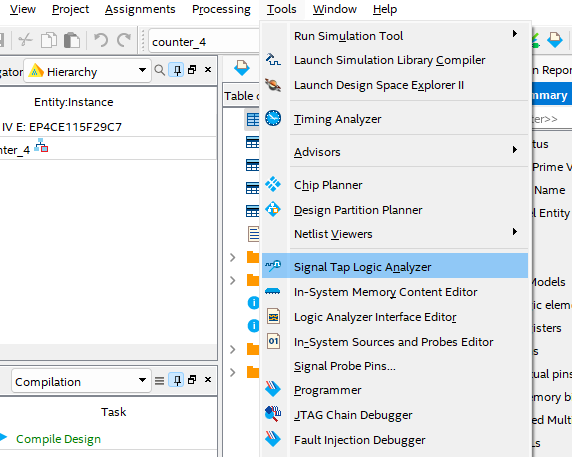

Tools - Signal Tap

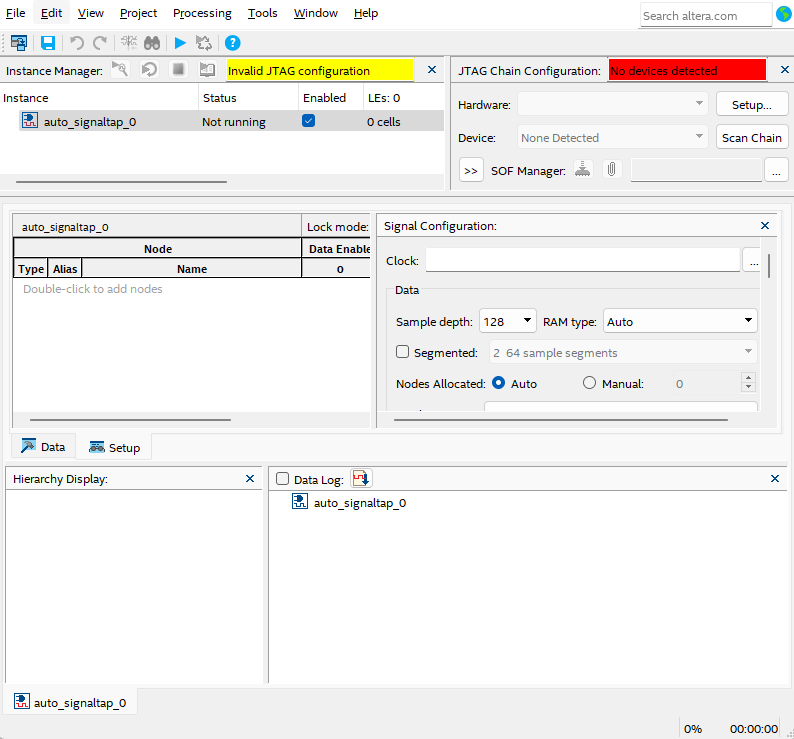

Signal Tap

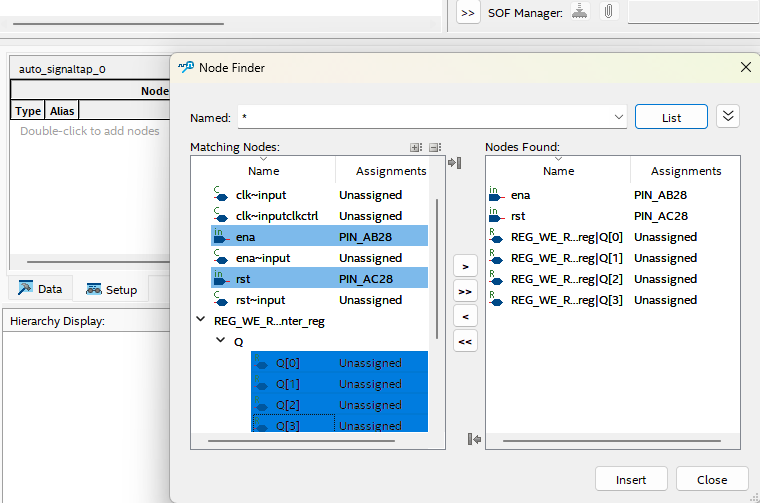

Double Click - Node Finder - List - Add Nodes

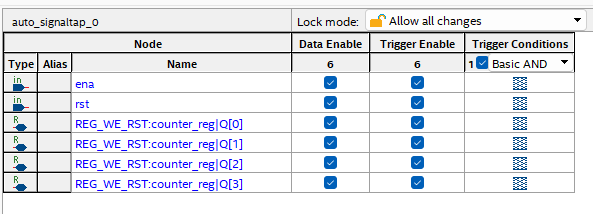

After Insert

Basic AND	all Signals triggered = Capture
Basic OR	one of the Signals triggered = Capture
Comparision	Compares value with conditions
Advanced	Creates complex trigger

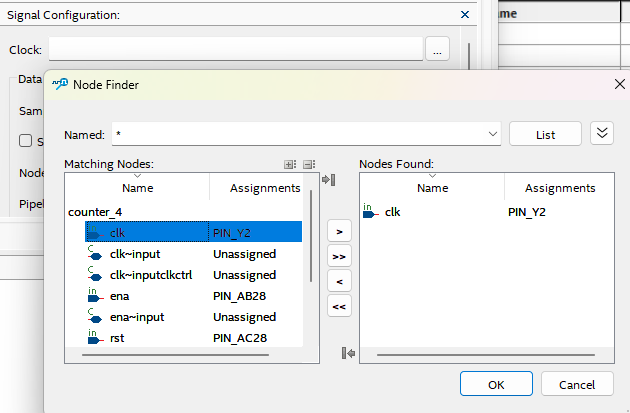

Select Clock

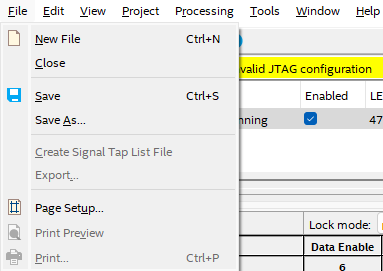

Save (.stp)

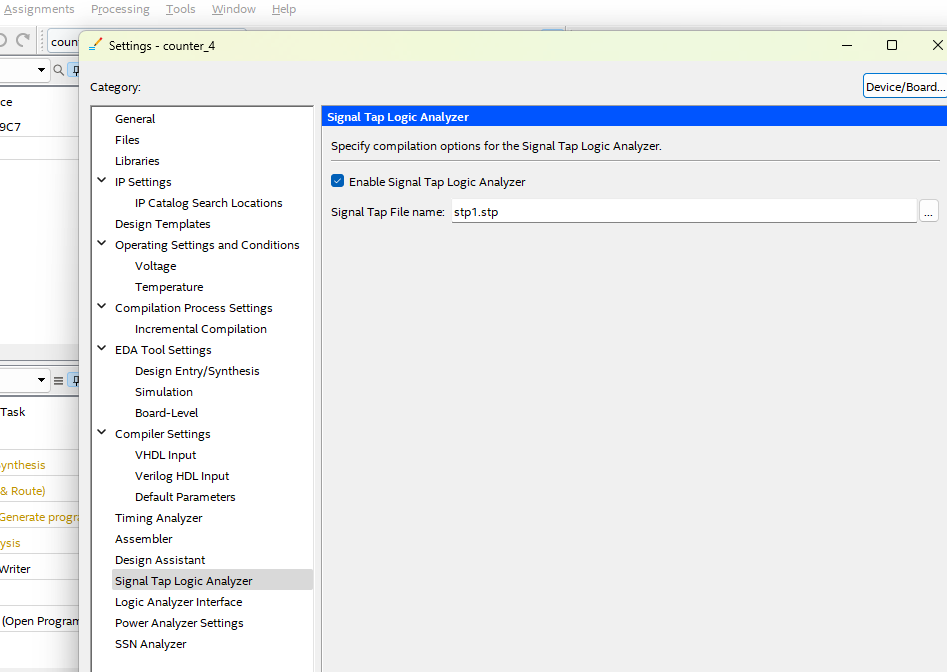

Assignments - Settings - Signal Tap - Enable - File Check

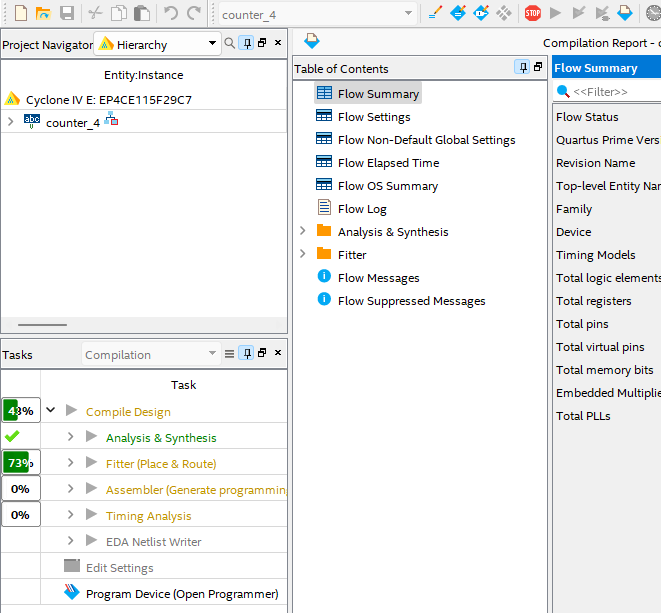

Compile

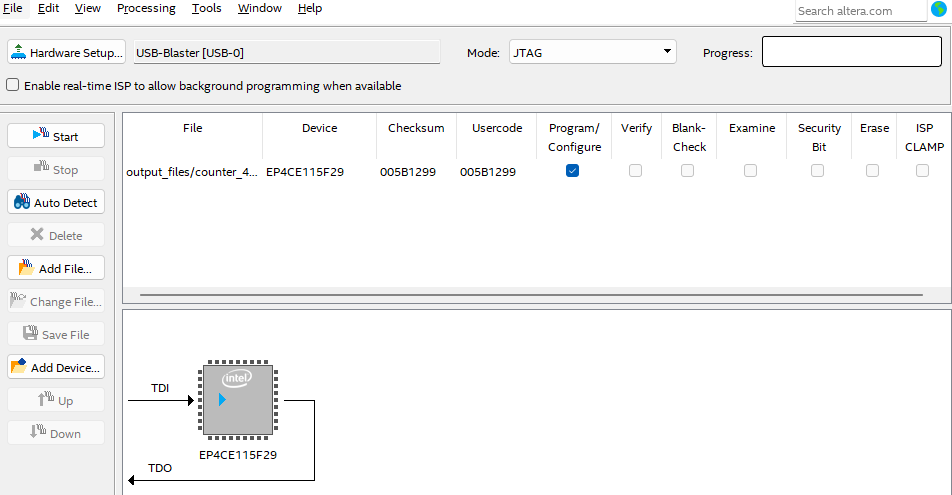

Programmer - Start

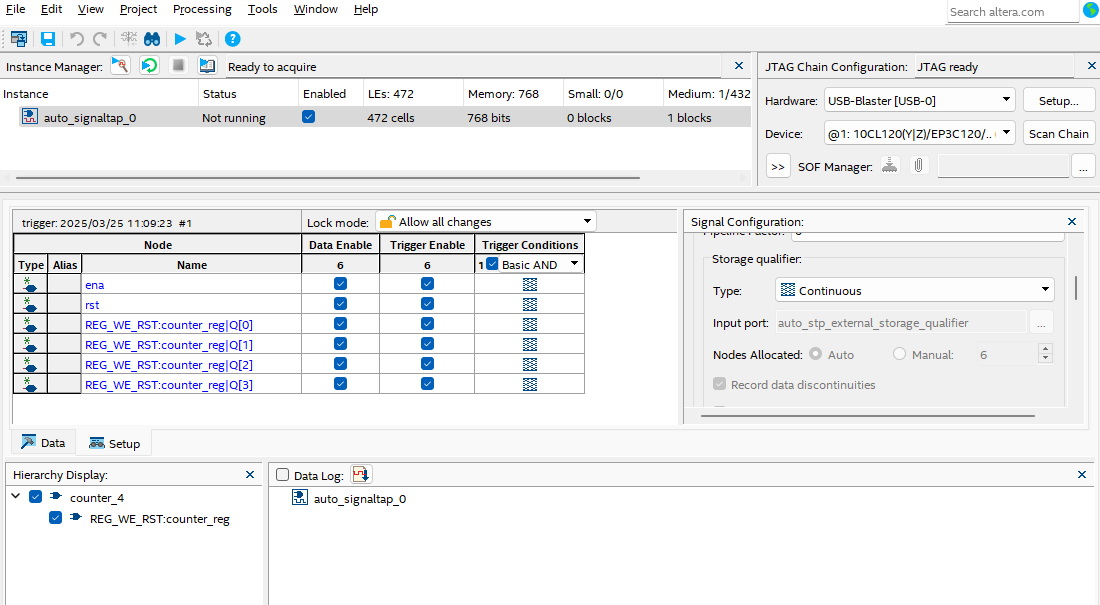

Open Signal Tap - Select JTAG Hardware

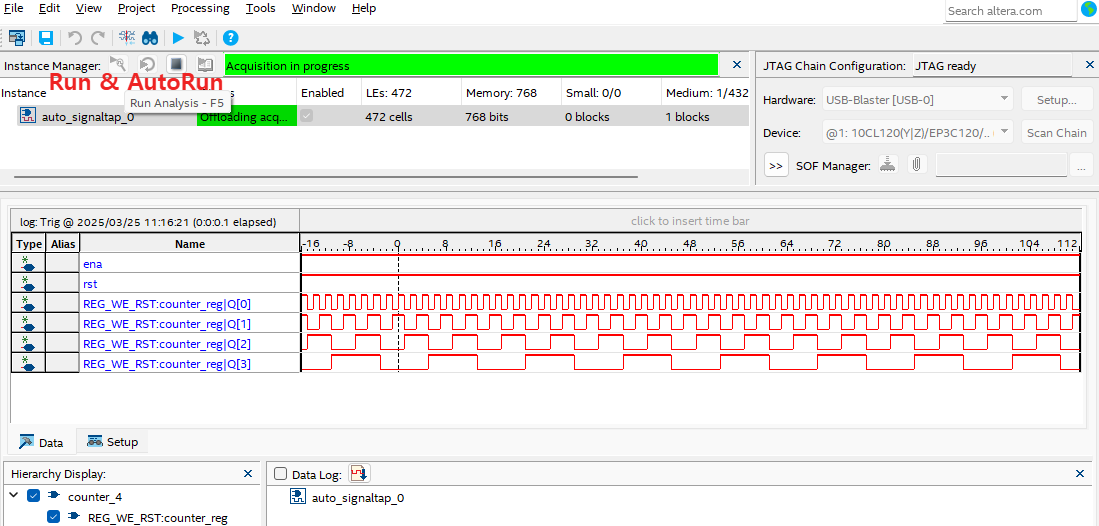

Run & Autorun - Check wave output
